YXAWO-30LA Linear Welding Oscillator
◆ Brief Introduction
Welding oscillator is to increase the width of the welding seam formed through one time welding, is mainly used for a relatively wide welding seam, for example, V-groove welds, fillet welds. When we weld a relatively wide seam, if the welding torch does not swing, the width of formed seam is relatively narrow. To solve this problem, we need to make the welding torch swing back and forth in the width direction along the seam.
Welding oscillator consists of two main parts, mechanical swing mechanism (we called slide) and electrical control part (we called controller).
Welding oscillator produced by our company has a high-quality controller and uses the speed & position double closed-loop DC-Servo control technology, to ensure oscillating accuracy and speed will not be affected by the load changes. Due to the oscillating speed and amplitude can be adjusted at any time, so it is easy to achieve the requirements of different weld width and oscillating speed; greatly reduce the labor intensity of the welder; ensure the welding quality and improve the welding efficiency.
Standard Configuration
Operation Panel

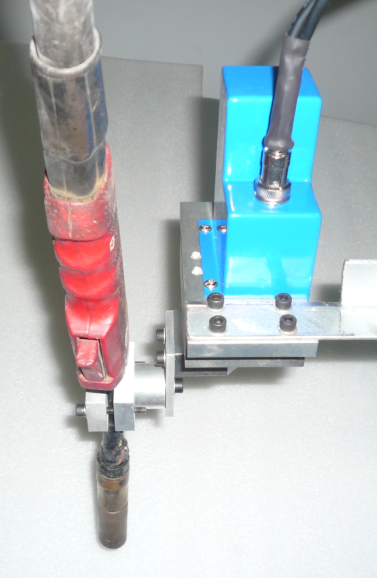

Installation of Slide
◆ Main Functions and Features
● Use the speed & position double closed-loop DC-Servo control technology, to ensure
● Use the speed & position double closed-loop DC-Servo control technology, to ensure
oscillating accuracy and speed will not be affected by the load changes.
● Motor over-current and over-voltage dual protection function to protect the motor
● Motor over-current and over-voltage dual protection function to protect the motor
performance and extend service life.
● Electronic controls oscillating speed, amplitude, left/right dwell, to make operations
● Electronic controls oscillating speed, amplitude, left/right dwell, to make operations
simple and convenient.
● While oscillator stopping, return to the center automatically.
● Compact structure and reasonable design are conducive to the use of small space.
● Wide input power supply voltage range is suitable for using around the world.
● While oscillator stopping, return to the center automatically.
● Compact structure and reasonable design are conducive to the use of small space.
● Wide input power supply voltage range is suitable for using around the world.
◆ Technical Parameters
|
Oscillating Parameters Input Mode |
Analog, Independent Knob Adjustment |
|
Rated Load |
5Kg |
|
Slide Stroke |
30mm |
|
Maximum Oscillating Speed |
3500mm/min |
|
Maximum Oscillating Frequency |
120times/min |
|
Oscillating Amplitude |
2-25mm |
|
Oscillating Accuracy |
±0.5mm |
|
Left / Right Dwell Time |
0-3s |
|
The Welding Methods to Be Applied |
TIG, MIG, MAG, Plasma Welding |
|
Control Methods |
Speed & Position Double Closed-Loop DC-Servo Control |
|
Slide Structure |
Motor + Guide + Sensor |
|
Input Power Supply |
AC100-240V Single-phase, 50/60Hz, 2A |
|
Outline Dimension |
Controller 240×160×120mm, Slide 135×65×171mm |
|
Mounting Hole Size |
Controller 170 × 120mm ,4-M4; Slide35×18mm, 4-M5 |
|
Weight |
Controller 2.65Kg, Slide 1.3Kg |
|
Standard Configuration |
Controller, Slide, Connecting Cables (including Power Cable and Slide Cable). |
|
User Options |
Welding Torch Holder, Cross Regulation Slide |
In addition, our company can also supply special welding oscillator in accordance with the needs of users.
